Cloudflare

It is possible to use Cloudflare together with Clonable, but this requires a specific configuration.
If the configuration is not set up correctly, this can lead to errors such as 502, 504, or ERR_TOO_MANY_REDIRECTS.

TL;DR​

When placing Cloudflare in front of a clone:

  1. contact Clonable
  2. make sure Clonable connects to the origin IP of your server
  3. place Cloudflare in front of the clone
  4. set the SSL/TLS encryption mode in Cloudflare to at least Full or Full (Strict)
Important

Clonable needs to internally adjust several checks and settings for this setup. These settings are not accessible from the dashboard.

Why this is necessary​

Many websites use Cloudflare for additional security, such as:

  • DDoS protection
  • WAF/firewall functionality
  • Bot and spam filtering
  • Rate limiting

Because Clonable operates as a reverse proxy, all clone traffic is routed through the Clonable proxy.
As a result, Cloudflare sees a large amount of traffic originating from Clonable instead of from individual visitors.

In some cases, this causes Cloudflare to block traffic from the Clonable proxy. This usually results in errors such as:

  • 502 Bad Gateway
  • 504 Gateway Timeout
  • blocks triggered by the WAF/firewall

The solution is to let Clonable communicate directly with your origin server instead of with the Cloudflare proxy.

The most stable configuration is:

Visitor → Cloudflare → Clonable → Origin server

In this setup:

  • Cloudflare protects the clone
  • Clonable communicates directly with the origin server
  • Cloudflare no longer blocks traffic from the Clonable proxy

Placing Cloudflare in front of the clone​

Not required for subfolder clones

If you only use subfolder clones, these settings are usually not required.

For clones running on a separate domain or subdomain, it is recommended to place Cloudflare in front of the clone.

Examples:

  • example.com/fr/ → usually not required
  • fr.example.com → recommended
  • example.fr → recommended

This gives each clone its own Cloudflare security layer.

DNS configuration​

Within Cloudflare, go to:

  1. DNS → Records

Configure the DNS records so they are proxied through Cloudflare (orange cloud enabled).

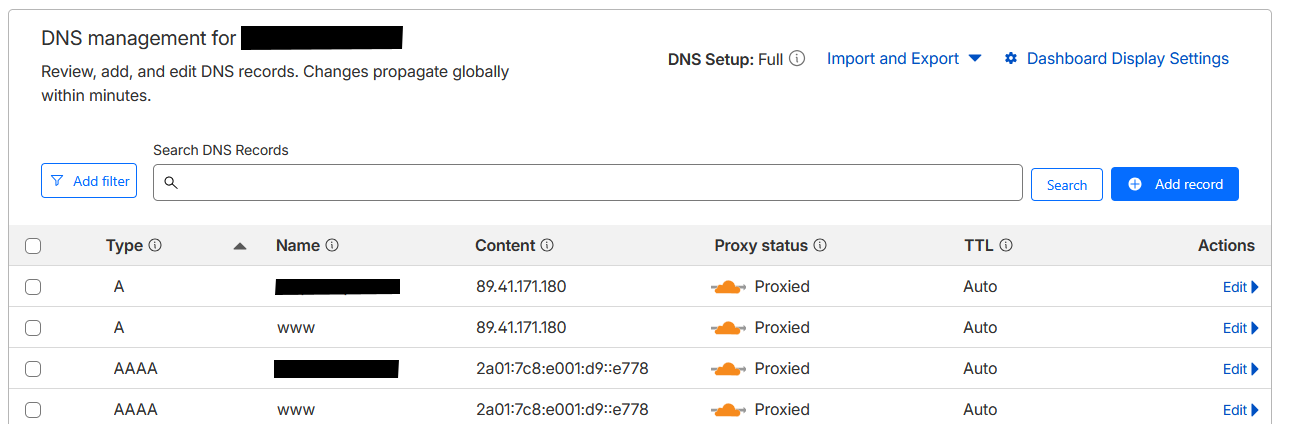

CloudFlare DNS settings

Cloudflare DNS settings

SSL/TLS configuration​

Within Cloudflare, go to:

  1. SSL/TLS → Overview → Configure

Set the encryption mode to:

  • Full
  • or Full (Strict)

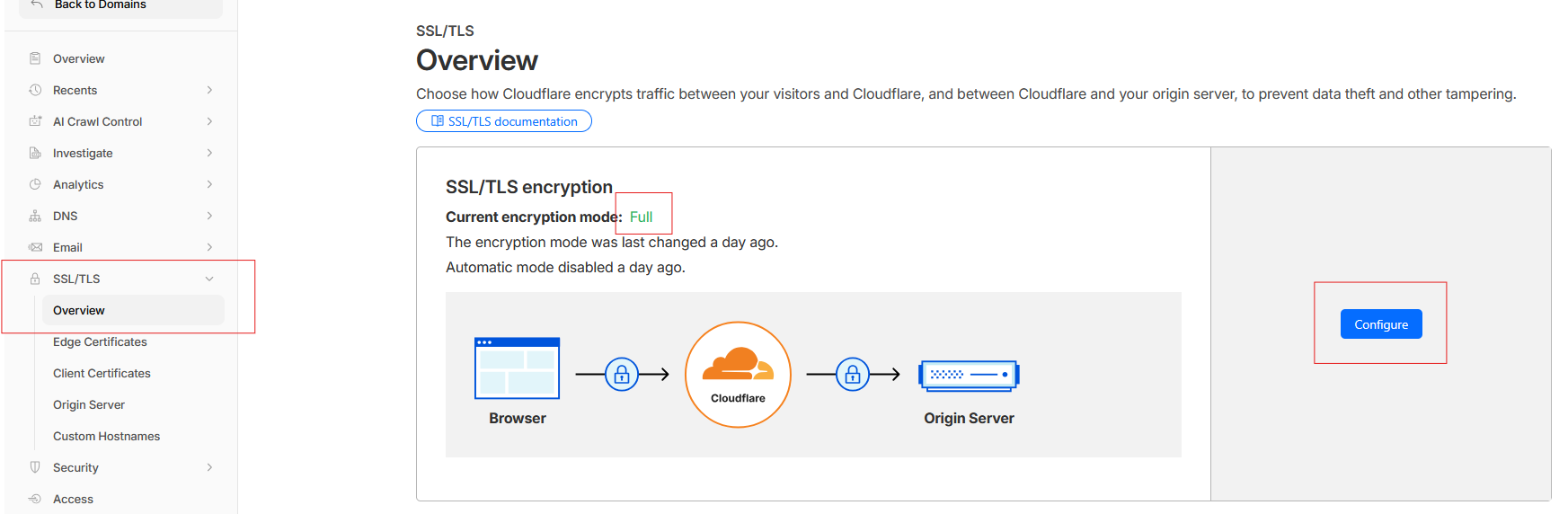

Cloudflare SSL/TLS

Never use Flexible

When SSL/TLS is set to Flexible, this often creates a redirect loop (ERR_TOO_MANY_REDIRECTS).

This happens because Cloudflare uses HTTPS towards the visitor, while using HTTP towards the origin server, whereas Clonable expects HTTPS.

See also the official Cloudflare documentation:

https://developers.cloudflare.com/ssl/troubleshooting/too-many-redirects/#encryption-mode-misconfigurations

Validation​

After DNS and SSL/TLS have been configured correctly:

  1. wait a few minutes for DNS propagation
  2. open the clone in your browser
  3. verify that Cloudflare headers are present, such as:
    • cf-ray
    • cf-cache-status
    • server: cloudflare
  4. verify within Cloudflare that traffic is visible under:
    • Security
    • Analytics
    • WAF Events

Common issues​

ERR_TOO_MANY_REDIRECTS​

Cause:

  • SSL/TLS is set to Flexible

Solution:

  • change the encryption mode to Full or Full (Strict)

Cloudflare SSL/TLS

502 or 504 errors​

Cause:

  • Cloudflare is blocking traffic from the Clonable proxy

Solution:

  • let Clonable connect directly to the origin IP of your server

Clone works without Cloudflare, but not with Cloudflare​

Check:

  • DNS records
  • SSL/TLS mode
  • firewall rules/WAF configuration
  • whether Clonable connects to the correct origin IP

Contacting Clonable​

Please contact Clonable before enabling this configuration.
We need to internally verify that:

  • the origin configuration is set correctly
  • firewall and security checks are compatible
  • the clone can function correctly behind Cloudflare
